AC-BSTC Big Driving type Two-Component Paint Road Marking Machine

AC-BSTC Big Driving type Two-Component Paint Road Marking MachineAC-BSTC big driving type two-component paint road marking machine is used for highway and urban area road line marking, having swing structure type, screeding flat-line type and high-pressure airless spraying type.

EMAIL: This email address is being protected from spambots. You need JavaScript enabled to view it.TEL: +86-371-55635088


Category: ACE Road Marking Machine > Road Marking Equipment > Two Component Road Marking Machine

Technical Data

Model AC-BSTC
Engine 37 kW water-cooled four-cylinder diesel engine
Air compressor 0.6 m3/min
Paint tank capacity 700L
Hardener tank capacity 100 L
Glass beads bin 100 L
Paint pump Double high-pressure airless pumps; Maximum pressure: 20 MPa; Single pump flow: 20 L/min
Spray gun Four pneumatic spraying guns, single manual spraying gun, especially for airport lines
Marking width 100 mm - 1000 mm (adjustable)
Control system Digital intelligent control system
Dimensions (L*W*H) 5300 mm × 2200 mm × 2300 mm
Weight 2800 kg
Optional system Guide warning screen, pre-marking system, trailer, swing type, screeding type

Features

Advanced hydraulic drive CVT system, adjust and control speed accurately.
Driving optimal design can control the machine effectively and ensure safety in an emergency.
High capacity double room paint tank and glass beads tank can ensure long distance and continuous road marking.
New type high pressure airless piston pump, stable pressure and high flow can ensure high efficiency and high quality road marking.
The width of road marking line can be adjustable according to customer's request.
Automatic paint stirring system can ensure stir equably, and improve the performance of paint effectively, and improve the durability of road marking line.
Long wheel tread can ensure road marking line more straight, and reduce the effect of human factors, and improve the quality of road marking line obviously.
Sensitive, precise and stable microelectronic control system can be operated easily.
Double seats which can be chosen freely according to the driver's request.
All-around warning system ensure safety during construction.
Optional system include pre-marking, trailer, swing type, screeding type.

Pictures

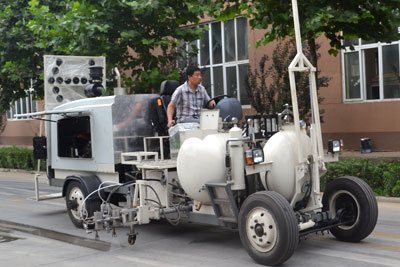

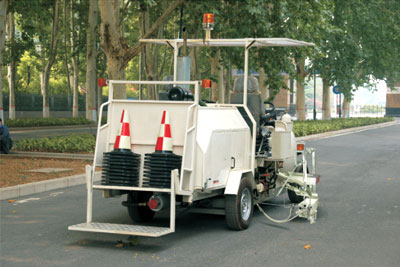

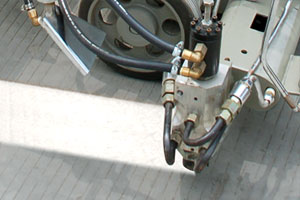

AC-BSTC two component road marking machineAC-BSTC two component road marking machine 01AC-BSTC two component road marking machine 02
