AC-SPT-I/II Self-propelled Thermoplastic Screeding Road Marking Machine

AC-SPT-I/II Self-propelled Thermoplastic Screeding Road Marking MachineAC-SPT-I/II road marking machine is a kind of self-propelled thermoplastic road marking machine. It can mark straight and beautiful road line, and is the best choice for small sized urban road line marking.

EMAIL: This email address is being protected from spambots. You need JavaScript enabled to view it.TEL: +86-371-55635088


Category: ACE Road Marking Machine > Road Marking Equipment > Thermoplastic Road Marking Machine

Technical Data

Model AC-SPT-I AC-SPT-II
Engine Robin 6.0 HP gasoline engine
Heating Mode Liquefied petroleum gas, infrared burnerGasoline or diesel fuel, injecting type burner
Paint tank capacity 65 L
Glass beads bin 14 L
Marking equipment Manual screeding marking shoe, standard configuration 150 mm
Marking width 100 mm, 200 mm, 250 mm, 300 mm (optional)
Marking thickness 1.8 mm - 3.0 mm (adjustable)
Dimensions (L*W*H) 1350 mm × 1000 mm × 1100 mm
Weight 230 kg
Optional system Standing trailer, electric start, warning light, lighting lamp

Features

1. Engine: Kohler or Robin 6.0 HP hand starting four-stroke air-cooled gasoline engine.
2. Marking shoe: The marking shoe body is welded by imported high temperature, shock resistance, abrasion resistance and high strength steel sheet. It has much better operability, leak tightness, sensibility and stability. The plinth is made of imported anti-oxidation, heat resistance and abrasion resistance steel and adopts screeding structure, which makes the structure more firm, no leak, more regular marking head. Floor knife that contacts with the ground directly adopts imported hard tungsten steel knife-head, which has good anti-sticky ability and abrasion resistance to ensure marking straight and neat. The standard configuration of the marking shoe is 150mm.
3. Paint tank: The heating preservation tank which is made of stainless steel or cold-rolled anti-oxidation steel equips with an erect hand stirring device. Capacity: 65L.The heating temperature can be freely controlled (0-230℃) according to different kinds of paint chosen by users.
4. Marking width and thickness: Change different marking shoe with different specifications (100, 150, 200, 300mm) according to the needs of projects. The thickness can be freely adjusted in a regulated scope (1.5-2.5mm) through adjusting the floor knife.
5. Heating mode: DY-SPT-I uses liquefied petroleum gas heating. AC-SPT-II Use diesel or gasoline injecting type heater, which can save fuel by 50% compared with general gas heater. Fuel tank capacity: 8L.
6. Driving system: Imported oil pressurized continuously variable speed transmission system (HTS) with automatic brake device that can freely go ahead, back off and stop.
7. Driving speed: Forward 0-4km/h, back off 0-3.2km/h.
8. Maximum climbing capacity: 15°.
9. Glass beads bin: Bin with window, which can check the quantity of glass beads. Capacity: 14L.
10. Glass beads dispenser: Automatic quantitative dispenser synchronous with the paint screeding system, ensures dispensing glass beads much evener and more economical.
11. Chassis: A firm welding frame, whose surface has been coated chrome or treated by high temperature spraying, equipped high speed type imported bearing ensures the whole machine running lightly and more convenient.
12. Rear wheel directional device: Lockable directional device can ensure the road marking machine moving in straight lines and turning freely in curved road.
Besides, the standing trailer, electric start, warning light and lighting lamp is optional.

Pictures

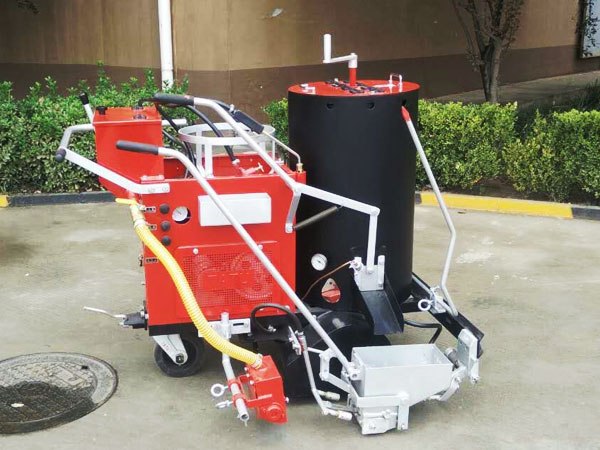

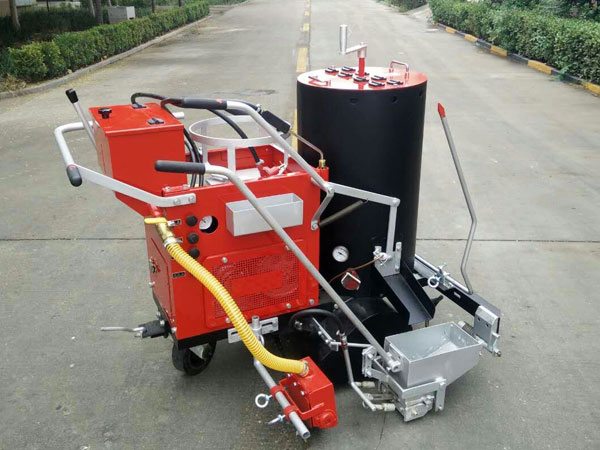

AC-SPT thermoplastic road marking machineAC-SPT thermoplastic road marking machine 01
