AC-MSAL-I/II Middle Driving-type Cold Paint Airless Road Marking Machine

AC-MSAL-I/II Middle Driving-type Cold Paint Airless Road Marking MachineAC-MSAL-I/II middle driving-type cold paint airless road marking machine equiped with new type high pressure airless plunger pump. Stable pressure and high flow can ensure high efficiency and high quality road marking. Type I for cold solvent and water-based paint. Type II for cold solvent, water-based, two-component, two color paint.

EMAIL: This email address is being protected from spambots. You need JavaScript enabled to view it.TEL: +86-371-55635088


Category: ACE Road Marking Machine > Road Marking Equipment > Cold Paint Road Marking Machine

Technical Data

Model AC-MSAL-I AC-MSAL-II
Engine 26 kW water-cooled three-cylinder gasoline engine
Air compressor 0.6 m3/min
Applied paint Cold solvent paint, water-based paintCold solvent, water-based, two-component, two color paint
Paint tank capacity 260 L130 L × 2
Glass beads bin 55 L
Paint pump Single high-pressure airless plunger pumps
Maximum pressure: 20 MPa
Single pump flow: 20 L/min
Double high-pressure airless plunger pumps
Maximum pressure: 20 MPa
Single pump flow: 12.5 L/min
Spray gun Double pneumatic spraying guns, single manual spraying gun
Marking width 50 mm - 1000 mm (adjustable)
Control system Digital intelligent control system
Dimensions (L*W*H) 3700 mm × 1840 mm × 2450 mm
Weight 782 kg
Optional system Guide warning screen, pre-marking system, trailer, swing type, screeding type and two-component type

Features

1. Advanced hydraulic drive CVT system, adjust and control speed accurately.
2. Driving optimal design can control the machine effectively and ensure safety in an emergency.
3. High capacity double room paint tank and glass beads tank can ensure long distance and continuous road marking.
4. New type high pressure airless piston pump, stable pressure and high flow can ensure high efficiency and high quality road marking.
5. The width of road marking line can be adjustable according to customer's request.
6. Automatic paint stirring system can ensure stir equably, and improve the performance of paint effectively, and improve the durability of road marking line.
7. Long wheel tread can ensure road marking line more straight, and reduce the effect of human factors, and improve the quality of road marking line obviously.
8. Sensitive, precise and stable microelectronic control system can be operated easily.
9. Double seats which can be chosen freely according to the driver's request.
10. All-around warning system ensure safety during construction.
11. Optional system include pre-marking, trailer, swing type, screeding type,and two component type.

Pictures

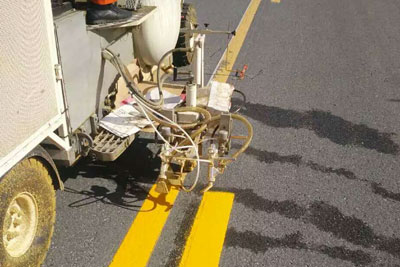

AC-MSAL cold paint road marking machine
