AC-BTSC-I/II Big Driving-type Thermoplastic Screeding Road Marking Machine

AC-BTSC-I/II Big Driving-type Thermoplastic Screeding Road Marking MachineAC-BTSC-I/II big driving-type thermoplastic screeding road marking machine is a professional road marking machine with high efficiency, and suitable for marking highway, urban road and local road with large construction square. Type I: pneumatic screeding flat line marking shoe. Type II: pneumatic screeding flat or convex line marking shoe.

EMAIL: This email address is being protected from spambots. You need JavaScript enabled to view it.TEL: +86-371-55635088

Category: ACE Road Marking Machine > Road Marking Equipment > Thermoplastic Road Marking Machine

Technical Data

Engine 37 kW diesel engine
Air compressor 0.6 m3/min
Heating Mode Liquefied petroleum gas, infrared burner, automatic temperature control
Paint tank capacity 325 L pressure tank
Glass beads bin 120 L
Marking equipment Pneumatic flat line marking shoe. Pneumatic flat or convex line marking shoe
Standard configuration 150 mm
Marking width 100 mm, 200 mm, 250 mm, 300 mm (optional)
Marking thickness 1.8 mm - 3.5 mm (adjustable) Bottom line 1.0 mm - 2.5 mm (adjustable)
convex height 3 mm - 7 mm (adjustable)
Control system Digital intelligent control system
Dimensions (L*W*H) 5950 mm × 2200 mm × 2200 mm
Weight 2960 kg
Optional system Guide warning screen, pre-marking system, and trailer


The sensitive, precise and stable control system makes the operation easy.
The omnibearing warning system can ensure the safety in construction.
The advanced hydraulic continuously variable transmission can adjust the speed precisely.
The optimal design of drive makes safety driving.
The large capacity paint tank and glass beads bin can make a long distance and continuous marking work.
The infrared heating, automatic temperature control, conducting oil heating preservation and vertical hydraulic stirrer can make an even heating.
Standard equipped with guide warning screen, pre-marking system and trailer is optional.

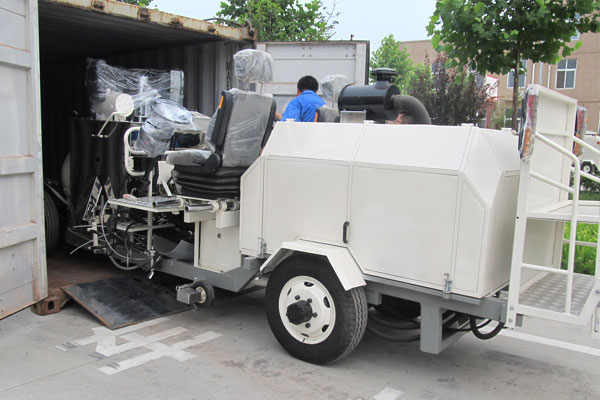

AC-BTSC thermoplastic road marking machineAC-BTSC thermoplastic road marking machine 01AC-BTSC thermoplastic road marking machine 02
