DY-HPT-I/III Hand-push Thermoplastic Screeding Road Marking Machine

DY-HPT-I/III Hand-push Thermoplastic Screeding Road Marking MachineDY-HPT-I/III hand-push thermoplastic screeding road marking machine are the perfect equipment for small road marking project. The screeding marking shoe makes the marking perfectly straight and beautiful.

EMAIL: This email address is being protected from spambots. You need JavaScript enabled to view it.TEL: +86-371-55635088


Category: DAYU Road Marking Machine > Road Marking Equipment > Thermoplastic Road Marking Machine

Technical Data

Model DY-HPT-I DY-HPT-III
Heating Mode Direct-fired, LPG LPG, infrared or direct-fired burner
Paint tank capacity 55 L 100 L
Glass beads bin 12 L
Marking equipment Manual screeding marking shoe, standard configuration 150 mm
Marking width 100 mm, 200 mm, 250 mm, 300 mm (optional)
Marking thickness 1.8 mm - 3.0 mm (adjustable)
Dimensions (L*W*H) 1210 mm × 890 mm × 970 mm 1210 mm × 890 mm × 1350 mm
Weight 165 kg 210 kg
Optional system Seat trailer

Features

Perfect equipment for small road marking project.
The screeding marking shoe makes the marking perfectly straight and beautiful.
The automatic quantitative dispenser which is synchronous with the paint screeding system makes the glass beads dispensing much evener and more economic.
The back wheel directional device makes sure the straight walking or curve turning freely.

Pictures

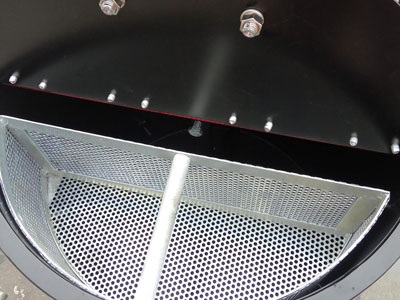

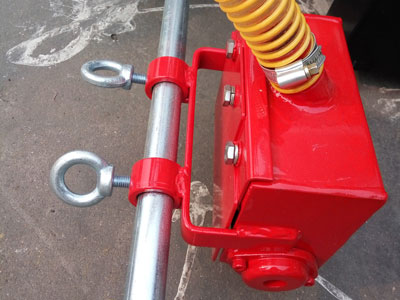

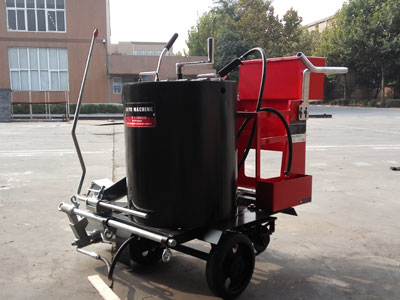

DY-HPT thermoplastic road marking machineDY-HPT thermoplastic road marking machine 01DY-HPT thermoplastic road marking machine 02
