AC-THDP-I/II/III Trailer Type Hydraulic Double Cylinder Thermoplastic Paint Pre-heater

AC-THDP-I/II/III Trailer Type Hydraulic Double Cylinder Thermoplastic Paint Pre-heaterAC-THDP-I/II/III trailer type thermoplastic paint pre-heater is equipped with AC-VHDP thermoplastic paint pre-heater and the hauling platform, is a special marking facility with both melting and haulage functions. Its haulage platform is mainly used for transporting the driving-type and self-propelled thermoplastic road marking machine.

EMAIL: This email address is being protected from spambots. You need JavaScript enabled to view it.TEL: +86-371-55635088


Category: ACE Road Marking Machine > Road Marking Equipment > Road Marking Preheater

Technical Data

Model AC-THDP-IAC-THDP-IIAC-THDP-III
Engine 18HP air-cooled sigle-cylinder diesel engine
Stirring system Hydraulic stirring system with protective device
Heating Mode LPG, energy-efficient burnerLPG, infrared propane burnerDiesel injection burner
Paint tank capacity 225 L × 2 (custom design)
Dimensions (L*W*H) 6300 mm × 1700 mm × 2400 mm
Weight 2700 kg
Optional system Automatic temperature control system, heat-transfer oil heating system, electric ignition system, engine type and brand, warning light, lighting lamp and fire extinguishing devices

Features

1. Equipped with pneumatic (or hydraulic) brake equipment, warning lamp (flicker frequency adjustable), and low temperature burning device ensure sufficient burning.
2. No need to install the pre-heater on the truck, save vehicle and manpower, reduce construction cost, improve working efficiency and safety in the construction site.
3. Trailer type pre-heater is an special equipment for melting paint and transportation, suitable for the driving-type and self-propelled thermoplastic road marking machine.
4. Optional system include automatic temperature control system, heat-transfer oil heating system, electric ignition system, engine type and brand, warning light, lighting lamp and fire extinguishing devices.

Pictures

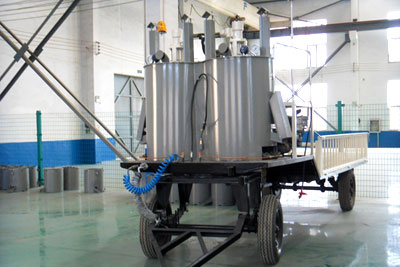

AC-THDP thermoplastic paint pre-heaterAC-THDP thermoplastic paint pre-heater 01AC-THDP thermoplastic paint pre-heater 02
