AC-FHDP Four-wheel Type Hydraulic Double Cylinder Thermoplastic Paint Pre-heater

AC-FHDP-I/II/III Four-wheel Type Hydraulic Double Cylinder Thermoplastic Paint Pre-heaterAC-FHDP thermoplastic paint pre-heater is a special equipment for melting thermoplastic paint and transportation, suitable for self-propelled thermoplastic road marking machine, can save vehicles and manpower, reduce construction cost, improve working efficiency and safety in the construction site.

EMAIL: This email address is being protected from spambots. You need JavaScript enabled to view it.TEL: +86-371-55635088


Category: ACE Road Marking Machine > Road Marking Equipment > Road Marking Preheater

Technical Data

Model AC-FHDP-I
Engine 18HP air-cooled sigle-cylinder diesel engine
Stirring system Hydraulic stirring system with protective device
Heating Mode LPG, energy-efficient burner
Paint tank capacity 225 L × 2 (custom design)
Dimensions (L*W*H) 4500 mm × 1700 mm × 2300 mm
Weight 2300 kg
Optional system Automatic temperature control system, heat-transfer oil heating system, electric ignition system, engine type and brand, warning light, lighting lamp and fire extinguishing devices

Features

1. Equipped with pneumatic (or hydraulic) brake equipment, warning lamp (flicker frequency adjustable), and low temperature burning device ensure sufficient burning.
2. No need to install the pre-heater on the truck, save vehicle and manpower, reduce construction cost, improve working efficiency and safety in the construction site.
3. Trailer type pre-heater is an special equipment for melting paint and transportation, suitable for self-propelled thermoplastic road marking machine.
4. Optional system include automatic temperature control system, heat-transfer oil heating system, electric ignition system, engine type and brand, warning light, lighting lamp and fire extinguishing devices.

Pictures

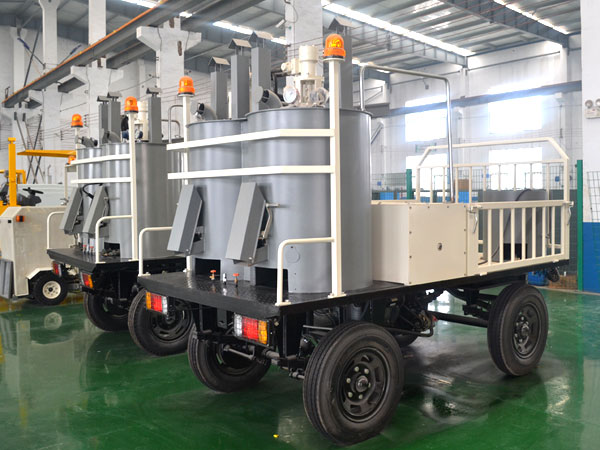

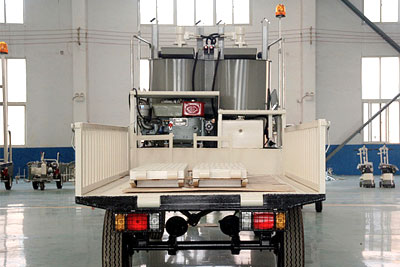

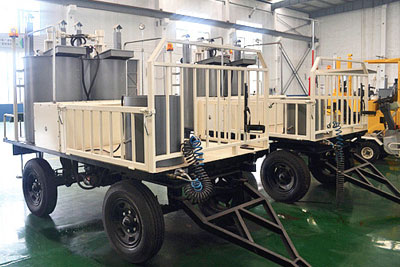

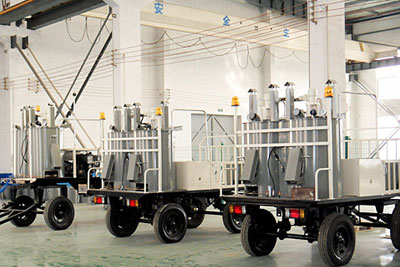

AC-FHDP thermoplastic paint pre-heaterAC-FHDP thermoplastic paint pre-heater 01AC-FHDP thermoplastic paint pre-heater 02
